286-640

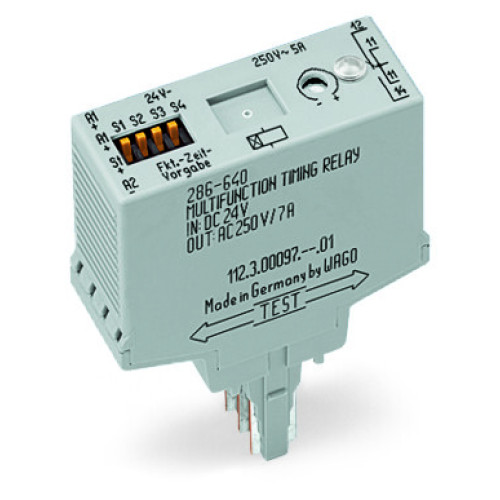

Multifunction timing relay module Relay with 1 changeover contact (1u) 4 time ranges gray

Manufacturer's No: 286-640     Manufacturer: WAGO
Multifunction timing relay module Relay with 1 changeover contact (1u) 4 time ranges gray

Availability Back Order

POA
  • Timer relay module
  • Nominal input voltage: 24 VDC
  • Limiting continuous current: 6 A
  • Multifunction/Multitime
  • Red status indicator
  • Module width: 20 mm
  • Gray

Accessories



Product

Manufacturer Material ID -
286-640
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121529

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Nominal current -
5 Ampere
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC

General data

With plug-in socket -
Clock function, starting with pause, variable -
Function delay on de-energization -
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function floating contact on energization -
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Time range -
0.3 Second
Type of electric connection -
Spring clamp connection

Mechanical data

Depth -
52 Millimetre
Height -
82.5 Millimetre
Width -
20 Millimetre
