3RH21222XB400LB2

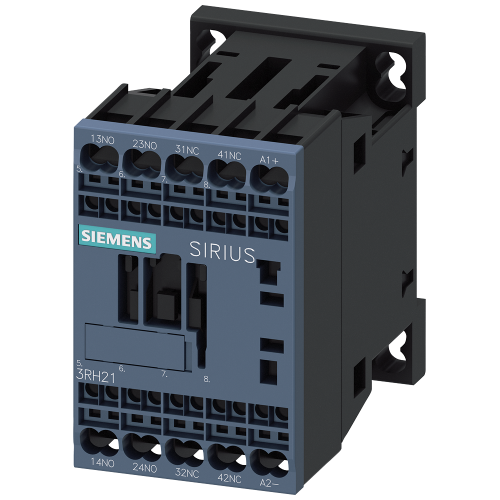

Contactor relay for railway 2 NO + 2 NC, 24 V DC, 0.7-1.25*Us, with integrated varistor, S00

Manufacturer's No: 3RH2122-2XB40-0LB2     Manufacturer: Siemens
Contactor relay for railway 2 NO + 2 NC, 24 V DC, 0.7-1.25*Us, with integrated varistor, S00

View 3D

Availability Back Order

£60.15
  • Contact configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
  • Coil voltage: 24-34 V DC
  • Operating voltage range: 0.7 to 1.25 times the rated voltage (Us)
  • Integrated varistor for surge protection
  • Size: S00
  • Spring-type terminals suitable for PLC outputs


Product

Manufacturer Material ID -
3RH2122-2XB40-0LB2
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Spring clamp connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC

Availability Back Order

£60.15
