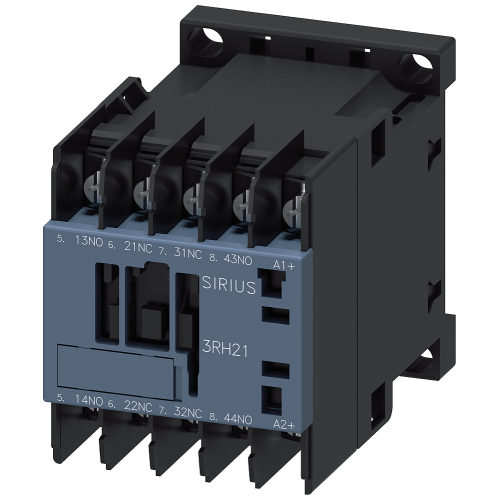

3RH21224KB40

Coupling contactor relay, 2 NO+2 NC, 24 V DC, S00, ring cable connection, with suppressor diode

Manufacturer's No: 3RH2122-4KB40     Manufacturer: Siemens
Coupling contactor relay, 2 NO+2 NC, 24 V DC, S00, ring cable connection, with suppressor diode

View 3D

Availability Back Order

£40.77
  • Coupling contactor relay
  • 2 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • 24 V DC coil voltage
  • Integrated suppressor diode
  • Size S00
  • Ring cable lug connection
  • Suitable for PLC outputs


Product

Manufacturer Material ID -
3RH2122-4KB40
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Other

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC

Availability Back Order

£40.77
