3RH22442AK60

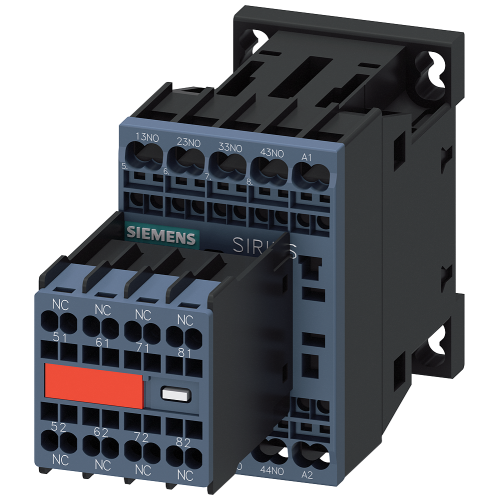

Contactor relay, 4 NO+4 NC, 110 V AC/50 Hz, 120 V AC/60 Hz, S00, spring-loaded terminal

Manufacturer's No: 3RH2244-2AK60     Manufacturer: Siemens
Contactor relay, 4 NO+4 NC, 110 V AC/50 Hz, 120 V AC/60 Hz, S00, spring-loaded terminal

View 3D

Availability Back Order

£47.62
  • Contactor relay with 4 Normally Open (NO) and 4 Normally Closed (NC) contacts
  • Operating voltage: 110 V AC at 50 Hz / 120 V at 60 Hz
  • Size: S00
  • Spring-loaded terminals for secure connections
  • Captive auxiliary switch for additional functionality

Accessories



Product

Manufacturer Material ID -
3RH2244-2AK60
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Spring clamp connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
120 Volt
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
120 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£47.62
