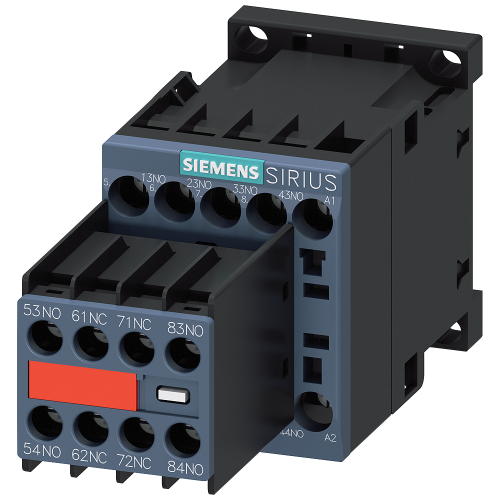

3RH22621AK60

Contactor relay, 6 NO + 2 NC, 110 V AC, 50 Hz / 120 V, 60 Hz, Size S00, screw terminal, Captive auxiliary switch

Manufacturer's No: 3RH2262-1AK60     Manufacturer: Siemens
Contactor relay, 6 NO + 2 NC, 110 V AC, 50 Hz / 120 V, 60 Hz, Size S00, screw terminal, Captive auxiliary switch

Availability Back Order

£45.66
  • Contactor relay: 6 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • Voltage: 110 V AC, 50 Hz / 120 V, 60 Hz
  • Size: S00
  • Terminal type: Screw terminal
  • Additional feature: Captive auxiliary switch

Accessories



Product

Manufacturer Material ID -
3RH2262-1AK60
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Screw connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
6

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
120 Volt
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
120 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£45.66
