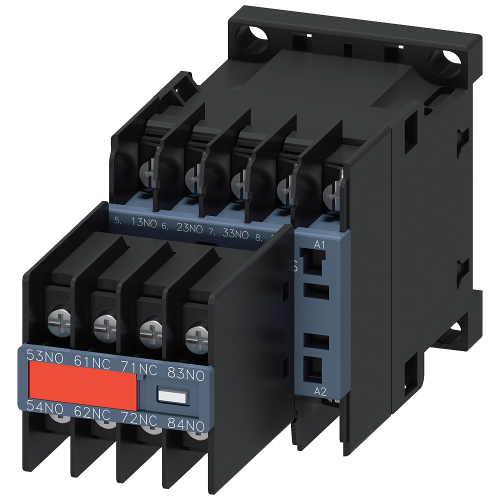

3RH22624AP60

Contactor relay, 6 NO + 2 NC, 220 V AC 50 Hz 240 V 60 Hz, Size S00, Ring cable lug connection, Captive auxiliary switch, for SUVA

Manufacturer's No: 3RH2262-4AP60     Manufacturer: Siemens
Contactor relay, 6 NO + 2 NC, 220 V AC 50 Hz 240 V 60 Hz, Size S00, Ring cable lug connection, Captive auxiliary switch, for SUVA applications

View 3D

Availability Back Order

£51.10
  • Contactor relay with 6 Normally Open (NO) and 2 Normally Closed (NC) contacts
  • Operating voltage: 220V AC at 50Hz and 240V at 60Hz
  • Size: S00
  • Connection type: Ring cable lug
  • Captive auxiliary switch

Accessories



Product

Manufacturer Material ID -
3RH2262-4AP60
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Other

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
6

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
240 Volt
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
240 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£51.10
