3RH22711AP60

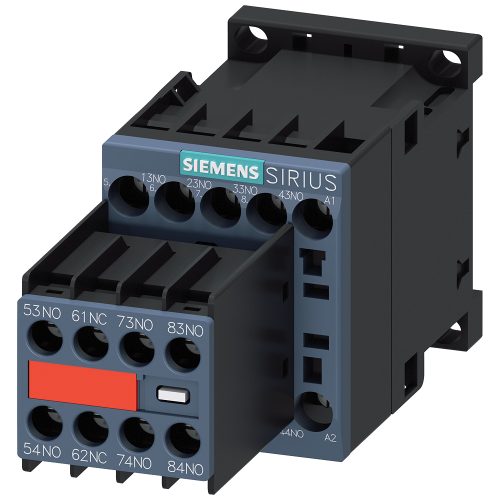

Contactor relay, 7 NO + 1 NC, 220 V AC, 50 Hz / 240 V, 60 Hz, Size S00, screw terminal, Captive auxiliary switch, for SUVA applica

Manufacturer's No: 3RH2271-1AP60     Manufacturer: Siemens
Contactor relay, 7 NO + 1 NC, 220 V AC, 50 Hz / 240 V, 60 Hz, Size S00, screw terminal, Captive auxiliary switch, for SUVA applications

Availability Back Order

£48.23
  • Contactor relay
  • Configuration: 7 Normally Open (NO) + 1 Normally Closed (NC)
  • Voltage: 220V AC, 50Hz / 240V, 60Hz
  • Size: S00
  • Terminal Type: Screw terminal
  • Features captive auxiliary switch

Accessories



Product

Manufacturer Material ID -
3RH2271-1AP60
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Screw connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
7

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
240 Volt
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
240 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£48.23
