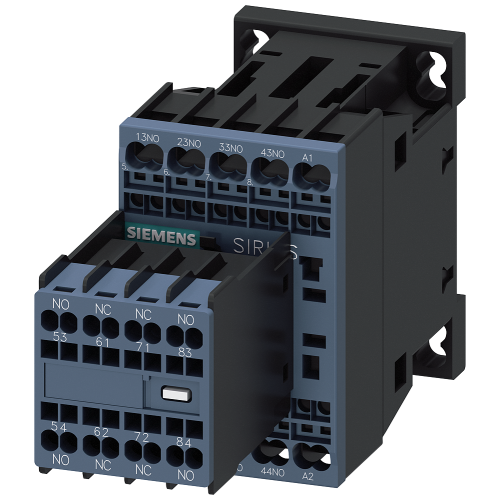

3RH23622AF00

Contactor relay, 6 NO + 2 NC, 110 V AC, 50 / 60 Hz, Size S00, spring-type terminal, Removable auxili

Manufacturer's No: 3RH2362-2AF00     Manufacturer: Siemens
Contactor relay, 6 NO + 2 NC, 110 V AC, 50 / 60 Hz, Size S00, spring-type terminal, Removable auxili

View 3D

Availability Back Order

£45.97
  • Contactor relay with 6 Normally Open (NO) and 2 Normally Closed (NC) contacts
  • Operating voltage: 110 V AC, Frequency: 50/60 Hz
  • Size: S00
  • Spring-type terminals for easy installation
  • Includes a removable auxiliary switch

Accessories



Product

Manufacturer Material ID -
3RH2362-2AF00
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Spring clamp connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
6

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£45.97
