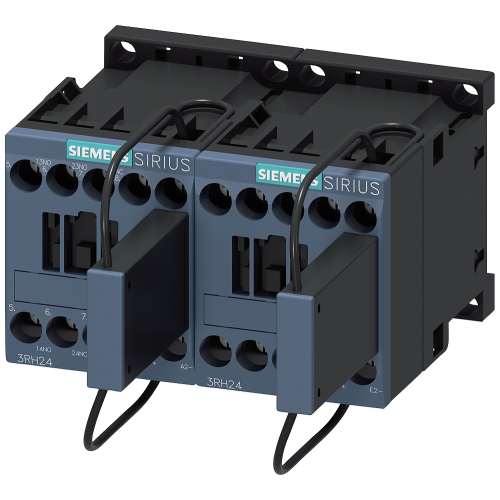

3RH24221LF400LA0

Contactor relay latched railway, 2 NO + 1 NC, 110 V DC, 0.7 ... 1.25* US, with varistor integrated,

Manufacturer's No: 3RH2422-1LF40-0LA0     Manufacturer: Siemens
Contactor relay latched railway, 2 NO + 1 NC, 110 V DC, 0.7 ... 1.25* US, with varistor integrated,

Availability Back Order

£136.32
  • Contactor relay for railway applications
  • Configuration: 2 Normally Open (NO) + 1 Normally Closed (NC)
  • Voltage: 110 V DC
  • Integrated varistor for surge protection
  • Size: S00
  • Screw terminal connection
  • Operating range: 0.7 to 1.25 times the rated voltage


Product

Manufacturer Material ID -
3RH2422-1LF40-0LA0
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Screw connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
110 Volt
Rated control supply voltage at DC -
110 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC
