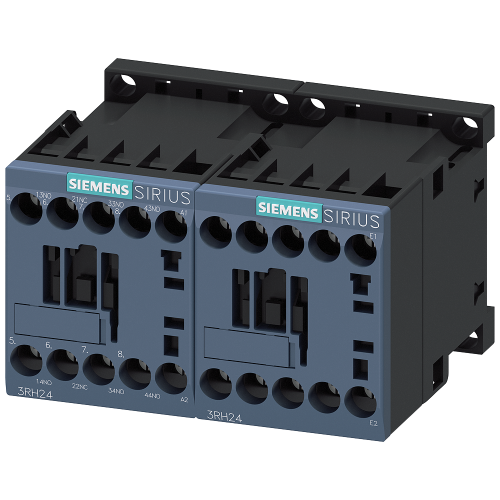

3RH24311AP00

Contactor relay, latched, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, Size S00, screw terminal

Manufacturer's No: 3RH2431-1AP00     Manufacturer: Siemens
Contactor relay, latched, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, Size S00, screw terminal

View 3D

Availability Back Order

£95.97
  • Contactor relay: latched
  • Configuration: 3 normally open (NO) + 1 normally closed (NC)
  • Voltage: 230 V AC, 50/60 Hz
  • Size: S00
  • Terminal type: Screw

Accessories



Product

Manufacturer Material ID -
3RH2431-1AP00
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Screw connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
3

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£95.97
