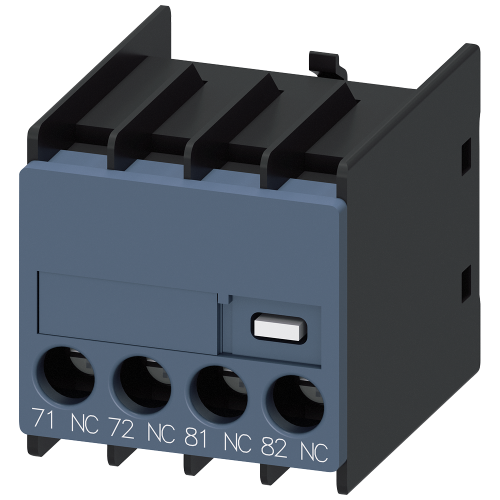

3RH29111MA02

Auxiliary switch on the front, 2 NC Current path 1 NC, 1 NC Connection from below for 3RH and 3RT screw terminal 73/74, 81/82

Manufacturer's No: 3RH2911-1MA02     Manufacturer: Siemens
Auxiliary switch on the front, 2 NC Current path 1 NC, 1 NC Connection from below for 3RH and 3RT screw terminal 73/74, 81/82

Availability Back Order

£7.98
  • Auxiliary switch with 2 Normally Closed (NC) contacts
  • Compatible with contactors 3RT2 and contactor relays 3RH2
  • Current path: 1 NC, 1 NC
  • Cable entry from below with screw terminals
  • Front-mounted for easy access


Product

Manufacturer Material ID -
3RH2911-1MA02
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

General data

Model -
Top mounting
Lamp holder -
None
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0
Type of electric connection -
Screw connection

Mechanical data

Mounting method -
Other

Electrical data

Rated operation current Ie at AC-15, 230 V -
6 Ampere

Availability Back Order

£7.98
