3RH29112FC22

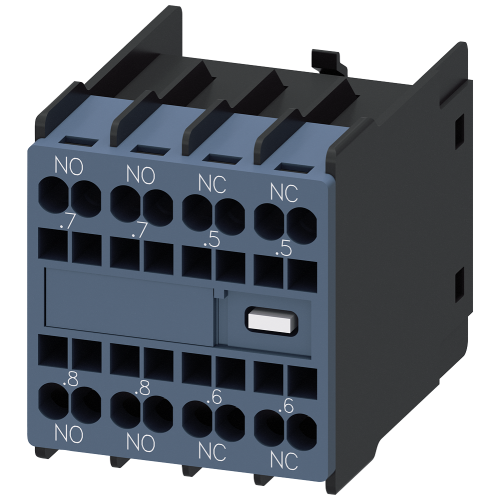

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NO, 1 NC, 1 NC for 3RH and 3RT sprin

Manufacturer's No: 3RH2911-2FC22     Manufacturer: Siemens
Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NO, 1 NC, 1 NC for 3RH and 3RT sprin

View 3D

Availability Back Order

£19.53
  • Auxiliary switch located on the front
  • Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
  • Voltage rating: 22 V
  • Current ratings: 0.7 A (NO), 0.8 A (NO), 0.5 A (NC), 0.6 A (NC)
  • Current path: 1 NO (leading), 1 NO (leading), 1 NC (lagging), 1 NC (lagging)
  • Compatible with contactors 3RT2 and contactor relays 3RH2
  • Features spring-loaded terminals


Product

Manufacturer Material ID -
3RH2911-2FC22
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

General data

Model -
Top mounting
Lamp holder -
None
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0
Type of electric connection -
Spring clamp connection

Mechanical data

Mounting method -
Other

Electrical data

Rated operation current Ie at AC-15, 230 V -
6 Ampere

Availability Back Order

£19.53
