3RH29112XA200MA0

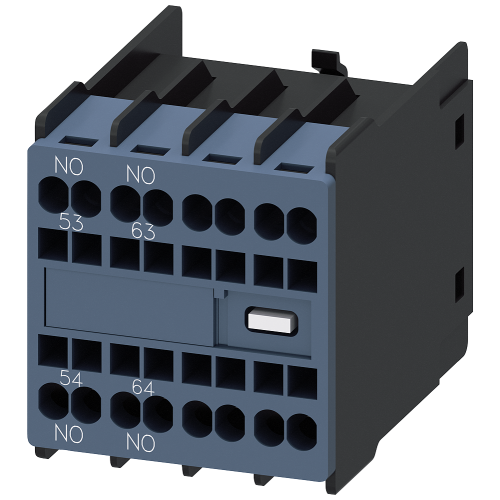

Auxiliary switch on the front, 2 NO Current path 1 NO, 1 NO for 3RH and 3RT spring-type terminal 53/54, 63/64

Manufacturer's No: 3RH2911-2XA20-0MA0     Manufacturer: Siemens
Auxiliary switch on the front, 2 NO Current path 1 NO, 1 NO for 3RH and 3RT spring-type terminal 53/54, 63/64

View 3D

Availability Back Order

£7.31
  • Auxiliary switch located on the front
  • Configuration: 2 Normally Open contacts
  • Compatible with contactors 3RT2 and contactor relays 3RH2
  • Current path: 1 Normally Open contact, 1 Normally Open contact


Product

Manufacturer Material ID -
3RH2911-2XA20-0MA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

General data

Model -
Top mounting
Lamp holder -
None
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Number of fault-signal switches -
0
Type of electric connection -
Spring clamp connection

Mechanical data

Mounting method -
Other

Electrical data

Rated operation current Ie at AC-15, 230 V -
6 Ampere

Availability Back Order

£7.31
