3RH29114FA04

Auxiliary switch on the front, 4 NC Current path 1 NC, 1 NC, 1 NC, 1 NC for 3RH and 3RT Ring cable l

Manufacturer's No: 3RH2911-4FA04     Manufacturer: Siemens
Auxiliary switch on the front, 4 NC Current path 1 NC, 1 NC, 1 NC, 1 NC for 3RH and 3RT Ring cable l

View 3D

Availability Back Order

£12.22

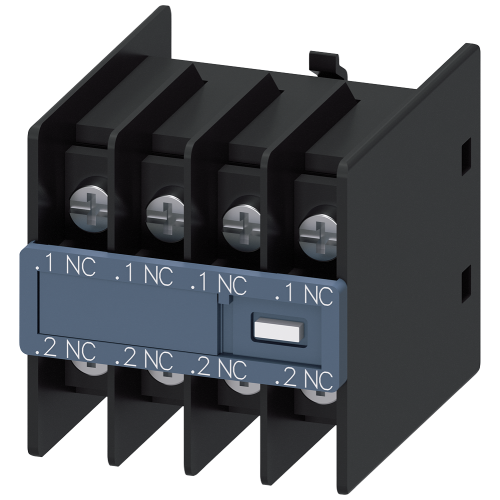

  • Auxiliary switch with 4 Normally Closed (NC) contacts
  • Current path: 1 NC
  • Ring cable lug connection
  • Compatible with contactors 3RT2 and contactor relays 3RH2


Product

Manufacturer Material ID -
3RH2911-4FA04
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39122216

General data

Model -
Top mounting
Lamp holder -
None
Type of electric connection -
Other
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
4
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0

Mechanical data

Mounting method -
Other

Electrical data

Rated operation current Ie at AC-15, 230 V -
6 Ampere

Availability Back Order

£12.22
