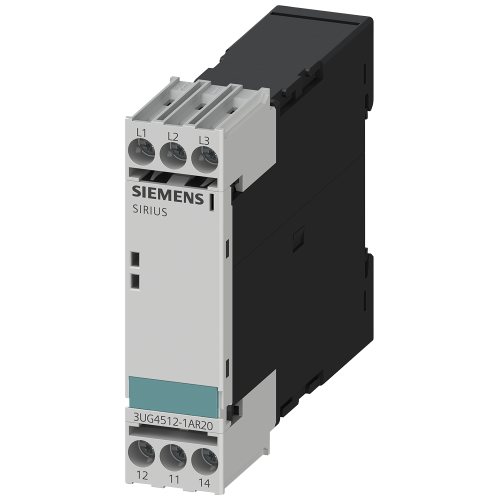

3UG45121AR20

Analog monitoring relay Phase failure and sequence 3 x 160...690 V 50...60 Hz AC 1 change-over conta

Manufacturer's No: 3UG4512-1AR20     Manufacturer: Siemens
Analog monitoring relay Phase failure and sequence 3 x 160...690 V 50...60 Hz AC 1 change-over conta

Availability In Stock

£90.14
  • Preferred successor: 3UG5512-1AR20 analog monitoring relay
  • Monitors phase failure and sequence for 3-phase systems
  • Voltage range: 160-690 V
  • Frequency range: 50-60 Hz
  • Contact type: AC 1 changeover
  • Screw terminal connection

Accessories



Product

Manufacturer Material ID -
3UG4512-1AR20
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
160 Volt
Rated control supply voltage Us at AC 60HZ -
160 Volt
Voltage type for actuating -
AC
Voltage measurement range -
160 Volt
Voltage type of supply voltage -
AC

General data

Max. permitted delay-on energization time -
- Second
Min. adjustable delay-on energization time -
- Second
Max. permitted off-delay time -
- Second
Min. adjustable off-delay time -
- Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Phase failure detection -
Phase sequence monitoring -
Type of electric connection -
Screw connection
With detachable clamps -

Mechanical data

Depth -
91 Millimetre
Height -
83 Millimetre
Width -
22.5 Millimetre

Availability In Stock

£90.14
