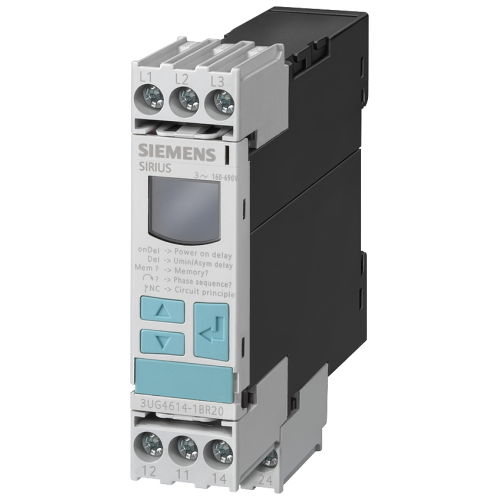

3UG46141BR280AA3

Digital monitoring relay unbalance 0-20%, DEFAULT OFF phase sequence

Manufacturer's No: 3UG4614-1BR28-0AA3     Manufacturer: Siemens
Digital monitoring relay unbalance 0-20%, DEFAULT OFF phase sequence

Availability Back Order

£162.39
  • Phased-out digital monitoring relay
  • Monitors asymmetry (0-20%)
  • Default settings: off phase sequence, off phase failure
  • Voltage range: 160 to 690 V AC, 50 to 60 Hz
  • Undervoltage default: 320 V, hysteresis default: 5%
  • ON/OFF delay default: 0.1 s
  • Features 2 changeover contacts
  • Equipped with screw terminals

Accessories



Product

Manufacturer Material ID -
3UG4614-1BR28-0AA3
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121521

Electrical data

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
160 Volt
Rated control supply voltage Us at AC 60HZ -
160 Volt
Voltage type for actuating -
AC
Function under voltage detection -
Voltage measurement range -
160 Volt
Voltage type of supply voltage -
AC

Mechanical data

Depth -
91 Millimetre
Height -
92 Millimetre
Width -
22.5 Millimetre

General data

Max. permitted delay-on energization time -
20 Second
Max. permitted off-delay time -
20 Second
Min. adjustable delay-on energization time -
0.1 Second
Min. adjustable off-delay time -
0.1 Second
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Phase failure detection -
Phase imbalance monitoring -
Phase sequence monitoring -
Type of electric connection -
Screw connection
With detachable clamps -
