3RH21222KG400LA4

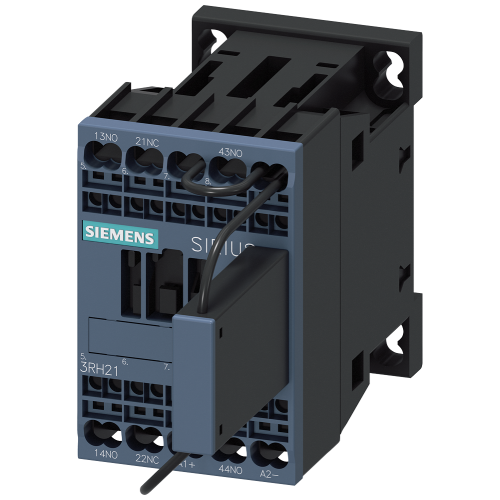

Contactor relay, 2 NO+1 NC, 125 V DC, S00, spring-type terminal, with suppressor diode

Manufacturer's No: 3RH2122-2KG40-0LA4     Manufacturer: Siemens
Contactor relay, 2 NO+1 NC, 125 V DC, S00, spring-type terminal, with suppressor diode

View 3D

Availability Back Order

£64.80
  • Contact arrangement: 2 Normally Open (NO) + 1 Normally Closed (NC)
  • Voltage: 125 V DC
  • Integrated suppressor diode
  • Size: S00
  • Spring-type terminal installation on standard mounting rail
  • Optimized for PLC outputs
  • Suitable for 0.7 to 1.25* US voltage range


Product

Manufacturer Material ID -
3RH2122-2KG40-0LA4
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Spring clamp connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
125 Volt
Rated control supply voltage at DC -
125 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC

Availability Back Order

£64.80
