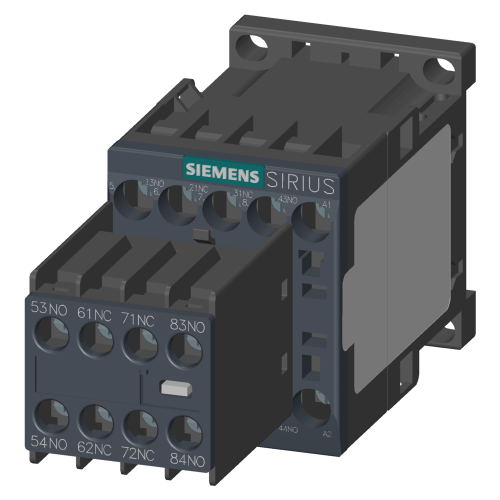

3RH23441AK200KA0

Contactor relay, 4 NO+4 NC, 120 V AC, 50/60 Hz, S00, screw terminal

Manufacturer's No: 3RH2344-1AK20-0KA0     Manufacturer: Siemens
Contactor relay, 4 NO+4 NC, 120 V AC, 50/60 Hz, S00, screw terminal

Availability Back Order

£50.07
  • Contactor relay with 4 normally open (NO) and 4 normally closed (NC) contacts
  • Operating voltage: AC 120V, 50/60 Hz
  • Size: S00
  • Screw terminal for easy installation
  • Removable auxiliary switch according to DIN EN 50005

Accessories



Product

Manufacturer Material ID -
3RH2344-1AK20-0KA0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Mechanical data

Connection type auxiliary circuit -
Screw connection

General data

Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4

Electrical data

Rated control supply voltage at AC 50 Hz -
120 Volt
Rated control supply voltage at AC 60 Hz -
120 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
AC

Availability Back Order

£50.07
