6EP13321LD10

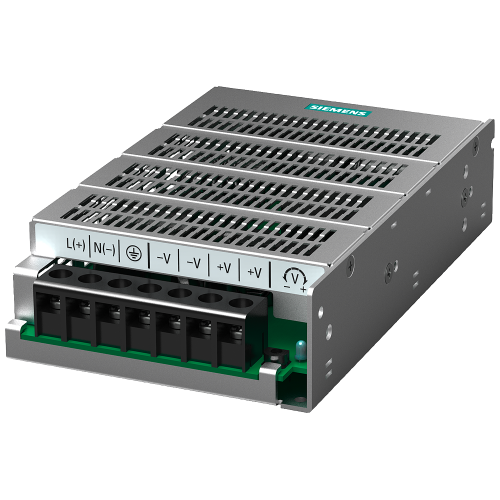

Power supply SITOP PSU100D, single-phase 24 V DC/4.1 A for wall mounting

Manufacturer's No: 6EP1332-1LD10     Manufacturer: Siemens
Power supply SITOP PSU100D, single-phase 24 V DC/4.1 A for wall mounting

Availability Back Order

£83.00
PSU100D 24 V/4.1 A Stabilized power supply input: 100-240 V AC output: 24 V DC/4.1 A

Accessories



Product

Manufacturer Material ID -
6EP1332-1LD10
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
TH
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens

Mechanical data

Built-in height -
- Millimetre
Built-in width -
- Millimetre
Depth -
38 Millimetre
Height -
158 Millimetre
Width -
97 Millimetre

Electrical data

Power consumption -
- Voltampere
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
Voltage type of supply voltage -
AC
1st secondary output voltage -
24 Volt
Max. output current 1 -
4.1 Ampere
Nominal value output current 1 -
4.1 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
100 Watt
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Secondary voltage adjustable -

General data

Width in number of modular spacings -
-
Performance level acc. EN ISO 13849-1 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Direct mounting possible -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Wall mounting possible -

Safety data

SIL according to IEC 61508 -
UN

Availability Back Order

£83.00
