6AV78622BC000AA0

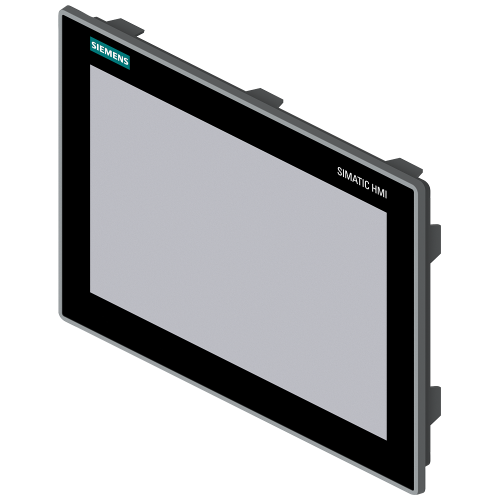

SIMATIC IFP1200 Basic Flat Panel 12 display (16:10), Touch, 1280 x 800 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA int

Manufacturer's No: 6AV7862-2BC00-0AA0     Manufacturer: Siemens
SIMATIC IFP1200 Basic Flat Panel 12 display (16:10), Touch, 1280 x 800 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA interface

View 3D

Availability Back Order

£515.00
  • 12" flat panel display with a resolution of 1280 x 800 pixels
  • Touchscreen functionality
  • Aspect ratio of 16:10
  • Suitable for distances up to 5 meters
  • Compatible with 24V DC power supply
  • Features DisplayPort and VGA interfaces

Accessories



Product

Manufacturer Material ID -
6AV7862-2BC00-0AA0
Net Weight -
3.86kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43211900

Technical Specification

-
Siemens

General data

Horizontal frequency -
- kiloHertz
Frame frequency -
- kiloHertz
Number of grey-scales/blue-scales of display -
-
Operation temperature -
0 Degrees celsius
Front build in possible -
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Number of colours of the display -
16000000
Number of function buttons -
0
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Recess depth -
50.1 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With HW-interface video signal, analogue -
With touch screen -

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
20.4 Volt
Voltage type of supply voltage -
DC

Mechanical data

Built-in depth -
51 Millimetre
Height of the front -
225.6 Millimetre
Screen diagonal -
12.1 inch
Width of the front -
319.6 Millimetre

Ambient conditions

Operating temperature -
0 Degrees celsius

Availability Back Order

£515.00
