6AV78622BE000AA0

SIMATIC IFP1900 Basic Flat Panel 19 display (16:9), Touch, 1366 x 768 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA inte

Manufacturer's No: 6AV7862-2BE00-0AA0     Manufacturer: Siemens

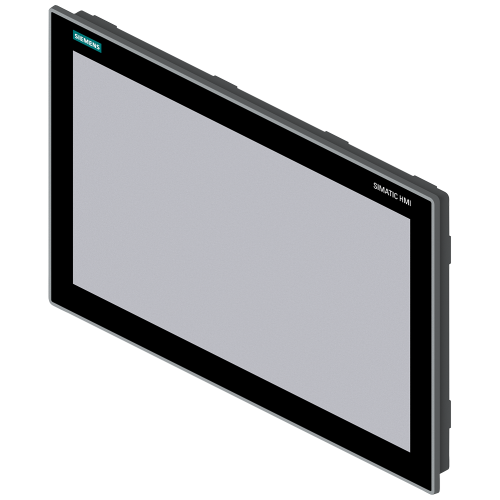

SIMATIC IFP1900 Basic Flat Panel 19 display (16:9), Touch, 1366 x 768 pixels, standard up to 5 m, for 24V DC, DisplayPort/VGA interface

View 3D

Availability Back Order

£721.00
  • 19" display with 1366 x 768 pixel resolution
  • 16:9 aspect ratio
  • Touchscreen functionality
  • Standard operating distance up to 5 meters
  • Compatible with 24V DC power supply
  • Features DisplayPort and VGA interfaces

Accessories



Product

Manufacturer Material ID -
6AV7862-2BE00-0AA0
Net Weight -
6.68kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43211900

Technical Specification

-
Siemens

General data

Horizontal frequency -
- kiloHertz
Frame frequency -
- kiloHertz
Number of grey-scales/blue-scales of display -
-
Operation temperature -
0 Degrees celsius
Front build in possible -
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Number of colours of the display -
16000000
Number of function buttons -
0
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Recess depth -
59 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With HW-interface video signal, analogue -
With touch screen -

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
20.4 Volt
Voltage type of supply voltage -
DC

Mechanical data

Built-in depth -
59 Millimetre
Height of the front -
297 Millimetre
Screen diagonal -
18.5 inch
Width of the front -
473 Millimetre

Ambient conditions

Operating temperature -
0 Degrees celsius

Availability Back Order

£721.00
