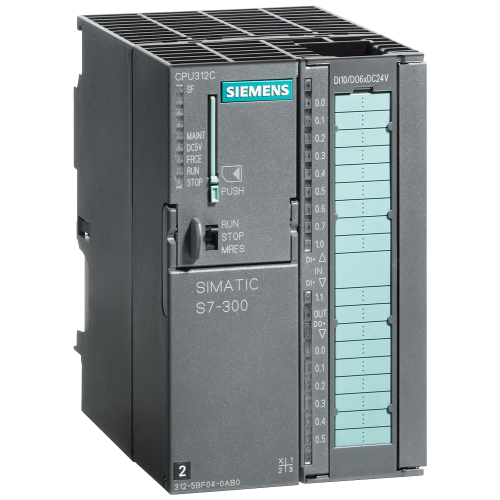

6ES73125BF040AB0

312C Compact CPU, 64 KB, 10 Inputs / 6 Outputs, 40 Pin Connector Required (MMC Required)

Manufacturer's No: 6ES7312-5BF04-0AB0     Manufacturer: Siemens
312C Compact CPU, 64 KB, 10 Inputs / 6 Outputs, 40 Pin Connector Required (MMC Required)

View 3D

Availability Back Order

£592.00
  • SIMATIC S7-300, CPU 312C Compact CPU with MPI
  • 10 Digital Inputs / 6 Digital Outputs
  • 2 High-speed Counters (10 kHz)
  • Integrated Power Supply: 24 V DC
  • Work Memory: 64 KB
  • Front Connector: 1x 40-pole
  • Micro Memory Card required

Accessories



Product

Manufacturer Material ID -
6ES7312-5BF04-0AB0
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens

General data

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Memory size -
64 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
10
Number of digital outputs -
6
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.1 Millisecond
Rail mounting possible -
Redundancy -
Supporting protocol for other bus systems -
System accessory -
Type of memory -
RAM

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC

Interfaces

Number of interfaces PROFINET -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

Safety data

SIL according to IEC 61508 -
None
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G

Mechanical data

Depth -
130 Millimetre
Height -
125 Millimetre
Width -
80 Millimetre

Availability Back Order

£592.00
