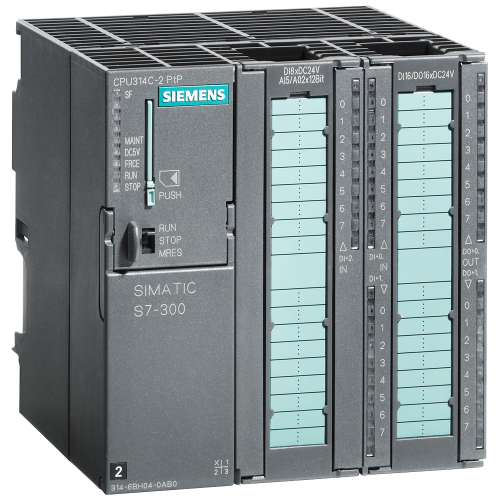

6ES73146BH040AB0

314C-2PTP Compact CPU, 192 KB, 24 Inputs / 16 Outputs, 4 AnaIogue Inputs / 2 Analogue, 2nd Serial Interface, 2 x 40 Pin Connectors

Manufacturer's No: 6ES7314-6BH04-0AB0     Manufacturer: Siemens
314C-2PTP Compact CPU, 192 KB, 24 Inputs / 16 Outputs, 4 AnaIogue Inputs / 2 Analogue, 2nd Serial Interface, 2 x 40 Pin Connectors Required (MMC Required)

View 3D

Availability Back Order

£1,973.00
  • Model: SIMATIC S7-300, CPU 314C-2 PTP
  • Compact CPU with MPI
  • 24 Digital Inputs (DI) / 16 Digital Outputs (DO)
  • 4 Analog Inputs (AI) / 2 Analog Outputs (AO)
  • 1 Pt100 input
  • 4 high-speed counters (60 kHz)
  • Integrated RS485 interface
  • Integrated power supply: 24 V DC
  • Work memory: 192 KB
  • Front connector: 2x 40-pole

Read more

  • Micro Memory Card required

Accessories



Product

Manufacturer Material ID -
6ES7314-6BH04-0AB0
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens

General data

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Memory size -
192 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
5
Number of analogue outputs -
2
Number of digital inputs -
24
Number of digital outputs -
16
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.06 Millisecond
Rail mounting possible -
Redundancy -
Supporting protocol for other bus systems -
System accessory -
Type of memory -
RAM

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC

Interfaces

Number of interfaces PROFINET -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

Safety data

SIL according to IEC 61508 -
None
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G

Mechanical data

Depth -
130 Millimetre
Height -
125 Millimetre
Width -
120 Millimetre

Availability Back Order

£1,973.00
