6ES73176FF040AB0

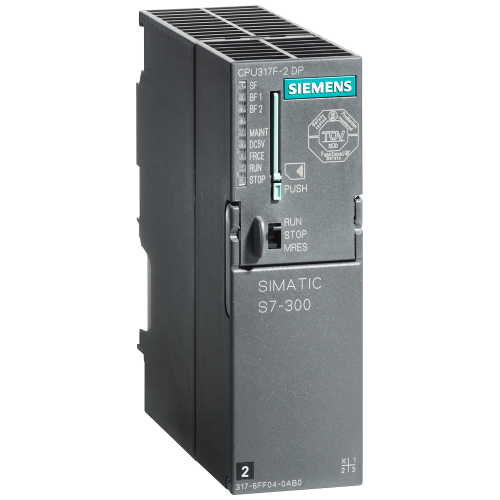

CPU 317F-2DP , 1.5 MB*, MPI/DP + Profibus DP (MMC Required)

Manufacturer's No: 6ES7317-6FF04-0AB0     Manufacturer: Siemens
CPU 317F-2DP , 1.5 MB*, MPI/DP + Profibus DP (MMC Required)

View 3D

Availability Back Order

£5,190.00
  • SIMATIC S7-300, CPU 317F-2DP
  • Central processing unit with 1.5 MB work memory
  • 1st interface: MPI/DP 12 Mbit/s
  • 2nd interface: DP master/slave
  • Micro Memory Card required
  • Compatible with software package S7 Distributed Safety V5.2 SP1 or higher

Accessories



Product

Manufacturer Material ID -
6ES7317-6FF04-0AB0
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
-
Siemens

General data

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
Level e
Memory size -
1536 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.025 Millisecond
Rail mounting possible -
Redundancy -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
System accessory -
Type of memory -
RAM

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC

Interfaces

Number of interfaces PROFINET -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
2
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

Mechanical data

Depth -
130 Millimetre
Height -
125 Millimetre
Width -
40 Millimetre

Safety data

Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
SIL according to IEC 61508 -
3
Suitable for safety functions -

Availability Back Order

£5,190.00
