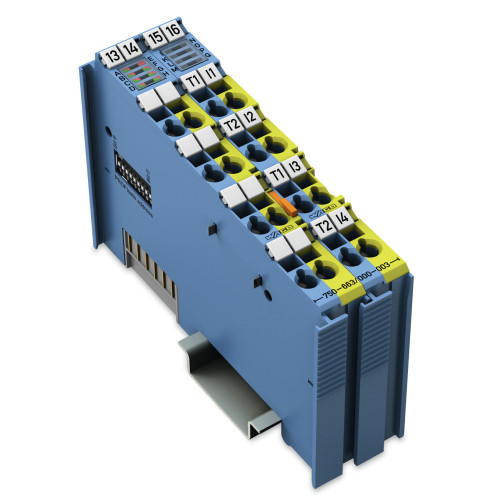

750-663/000-003

Intrinsically safe 4-channel digital input, 24 VDC, PROFIsafe V2.0 iPar

Manufacturer's No: 750-663/000-003     Manufacturer: WAGO
Intrinsically safe 4-channel digital input, 24 VDC, PROFIsafe V2.0 iPar

Availability Back Order

£698.54
  • Intrinsically safe 4-channel digital input
  • Operating voltage: 24 VDC
  • Supports PROFIsafe V2.0 iPar

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.61
Back Order

Group marker carrier, transparent

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 750-103
Price £0.70
Back Order

Shield clamping saddle, 12.4 mm wide, 3 ... 8 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-208
Price £5.84
Back Order

Shield clamping saddle, 21.8 mm wide, 6 ... 16 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-216
Price £7.64
Back Order

Shield clamping saddle, 30 mm wide, 6 ... 20 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-220
Price £9.71
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-007
Price £3.67
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-006
Price £3.67
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-005
Price £3.67
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-023
Price £3.67
Back Order


Product

Manufacturer Material ID -
750-663/000-003
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
32151705

Technical Specification

-
Wago

General data

Time delay at signal exchange -
- Millisecond
Degree of protection (IP) -
IP20
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP20
Fieldbus connection over separate bus coupler possible -
Number of digital inputs -
4
Number of digital outputs -
0
Performance level acc. to EN ISO 13849-1 -
Level e
Rail mounting possible -
System accessory -
Time delay at signal change -
0 Millisecond
Type of digital output -
Other
Type of electric connection -
Spring clamp connection

Electrical data

Type of voltage (input voltage) -
UN
Output current -
- Ampere
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
Type of output voltage -
UN
Input current at signal 1 -
3 Milliampere
Supply voltage DC -
24 Volt
Voltage type of supply voltage -
DC

Interfaces

Number of interfaces PROFINET -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

Mechanical data

Depth -
67.8 Millimetre
Height -
100 Millimetre
Width -
24 Millimetre

Safety data

Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
SIL according to IEC 61508 -
3
Suitable for safety functions -

Availability Back Order

£698.54
