6ES71474JD000AB0

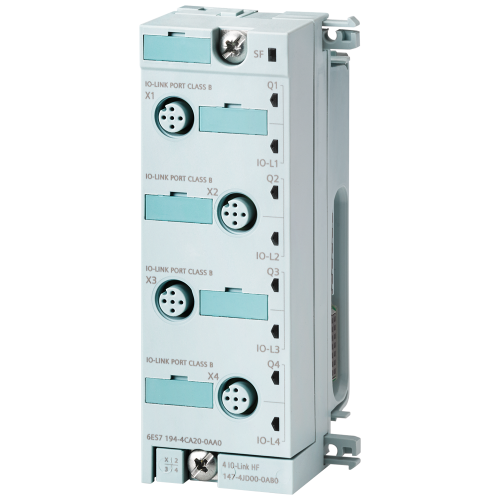

SIMATIC ET 200pro 4IO-L HF

Manufacturer's No: 6ES7147-4JD00-0AB0     Manufacturer: Siemens
SIMATIC ET 200pro 4IO-L HF

View 3D

Availability Back Order

£294.00
  • SIMATIC DP electronic module for ET 200pro 4 IO-Link High Feature
  • Includes Channel diagnostics
  • Compatible with bus module
  • Connection module IO 6ES7194-4CA20-0AA0 (order separately)

Mandatory additional product



Product

Manufacturer Material ID -
6ES7147-4JD00-0AB0
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens

General data

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Degree of protection (IP) -
IP65/IP67
Front build in possible -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
IO link master -
Rail mounting possible -
System accessory -
Wall mounting/direct mounting -
With potential separation -

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
20.4 Volt
Voltage type of supply voltage -
DC

Safety data

SIL according to IEC 61508 -
UN
Explosion safety category for gas -
None
Explosion safety category for dust -
None

Mechanical data

Depth -
35 Millimetre
Height -
130 Millimetre
Width -
45 Millimetre

Availability Back Order

£294.00
