6XV18612C

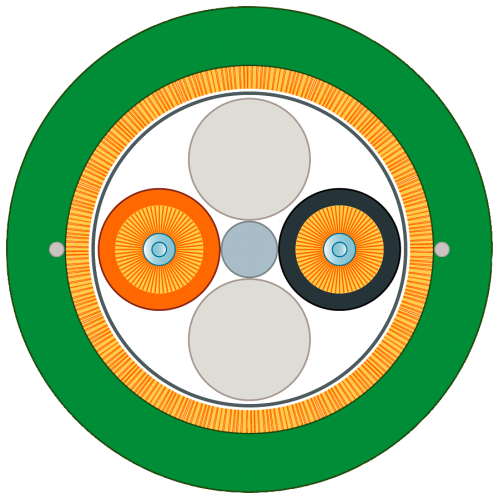

PCF Trailing Cable 200/230, segmentable, PUR outer sheath, sold by the meter

Manufacturer's No: 6XV1861-2C     Manufacturer: Siemens
PCF Trailing Cable 200/230, segmentable, PUR outer sheath, sold by the meter

Availability Back Order

£11.08
  • PCF Trailing Cable
  • (200/230) Trailing cable
  • Splittable design
  • Sold by the meter
  • Maximum length: 2000 meters
  • Minimum order quantity: 20 meters


Product

Manufacturer Material ID -
6XV1861-2C
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85447000
Country of Origin -
DE
Minimum Order Quantity -
20
UNSPSC -
26121609

Technical Specification

-
Siemens

General data

Circuit integrity -
UN
Category -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Fibre type -
Multi mode 200/300
Flame retardant -
No
Colour outer sheath -
Green
Type of tube -
Other
Reaction-to-fire class according to EN 13501-6 -
Fca
Cable metal free -
Number of fibres -
2
Number of fibres per tube -
1
Reaction-to-fire according to EN 13501-6: Class -
Fca
Resistant to chemicals -
Sheath colour -
Green
With strain relief -

Mechanical data

Material outer sheath -
Polyurethane (PUR)
Specification material outer sheath -
Other
Min. permitted bending radius, stationary application/permanent installation -
175 Millimetre
Outer diameter approx. -
8.8 Millimetre

Availability Back Order

£11.08
