6XV18308AH10

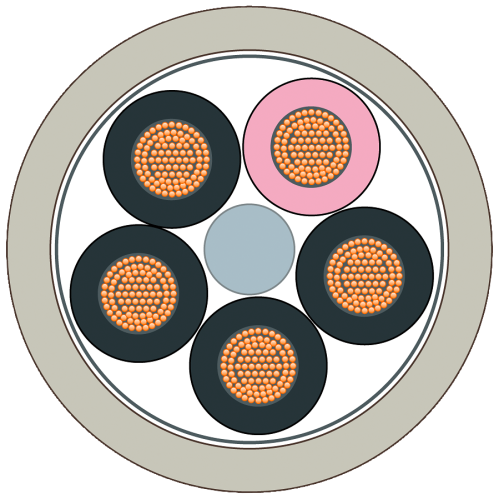

Energy cable, 5-core power line, stranded wire, 5x 1.5 mm2, trailable Delivery unit: max. 1000 m, Minimum order 20 m Sold by the m

Manufacturer's No: 6XV1830-8AH10     Manufacturer: Siemens
Energy cable, 5-core power line, stranded wire, 5x 1.5 mm2, trailable Delivery unit: max. 1000 m, Minimum order 20 m Sold by the meter

Availability Back Order

£4.17
  • Energy cable
  • 5-core power line
  • Stranded wire
  • 5x 1.5 mm²
  • Trailable
  • Delivery unit: max. 1000 meters
  • Minimum order quantity: 20 meters
  • Sold by the meter


Product

Manufacturer Material ID -
6XV1830-8AH10
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

-
Siemens

General data

Connection 2 -
UN
Frequency -
- Hertz
Nominal cross section conductor -
1.5 Square millimetre
Connection 1 -
Other
Colour outer sheath -
Grey
Protective conductor -
Number of cores -
5
Temperature resistance -
-40 Degrees celsius
Degree of protection (IP) -
Other
Smoke development class according to EN 13501-6 -
None
Reaction-to-fire class according to EN 13501-6 -
Eca
Euro class acidity according to EN 13501-6 -
None
Euro class flaming droplets/particles according to EN 13501-6 -
None

Mechanical data

Length -
- Metre
Material outer sheath -
Polyurethane (PUR)
Outer diameter approx. -
10.5 Millimetre

Electrical data

Nominal current -
16 Ampere
Nominal voltage -
600 Volt

Availability Back Order

£4.17
