6XV18412B

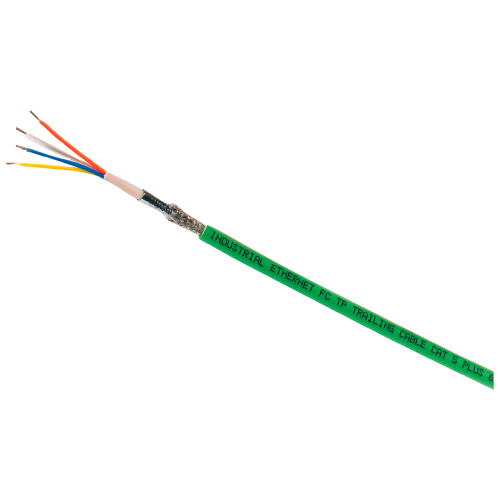

IE FC TP Robust flex. cable GP;2 x without;2x2;Cat5e;TPE;robust

Manufacturer's No: 6XV1841-2B     Manufacturer: Siemens
IE FC TP Robust flex. cable GP;2 x without;2x2;Cat5e;TPE;robust

Availability In Stock

£3.90
  • Industrial Ethernet FastConnect TP cable
  • 2x2 configuration (PROFINET Type B)
  • TPE protective jacket
  • Flexible cores
  • Compatible with FC RJ45 plug and FC outlet RJ45
  • 4-core, shielded, Cat5e cable
  • Sold by the meter
  • Maximum delivery unit: 1000 meters
  • Minimum order quantity: 20 meters


Product

Manufacturer Material ID -
6XV1841-2B
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Minimum Order Quantity -
20
UNSPSC -
26121609

Technical Specification

-
Siemens

General data

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Core identification -
Colour
Flame retardant -
No
Colour outer sheath -
Green
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Conductor category -
Class 2 = stranded
Protective sheath -
No
Stranding -
Bundle
Reaction-to-fire class according to EN 13501-6 -
Eca
Category -
5E
Conductor surface -
Bare
Individual screen type -
None
Number of cores -
4
Number of stranding elements -
2
NVP value -
69 Percentage
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-20 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Green
Stranding element -
Quad

Mechanical data

Core insulation material -
Other
Diameter conductor -
0.75 Millimetre
Material outer sheath -
Other
Specification material outer sheath -
Other
Conductor Diameter -
0.75 Millimetre
Min. permitted bending radius, moving application with forced guidance -
52 Millimetre
Min. permitted bending radius, moving application/free movement -
52 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
52 Millimetre
Outer diameter approx. -
6.5 Millimetre

Availability In Stock

£3.90
