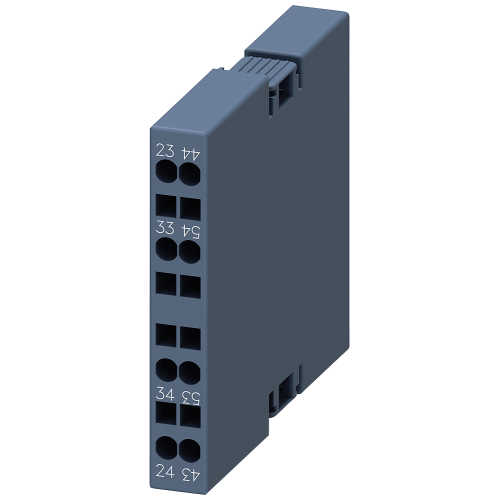

3RH29112DA20

Auxiliary switch lateral, 2 NO, current paths: 1 NO, 1 NO for motor contactors, S00

Manufacturer's No: 3RH2911-2DA20     Manufacturer: Siemens
Auxiliary switch lateral, 2 NO, current paths: 1 NO, 1 NO for motor contactors, S00

Availability Back Order

£10.99
  • Auxiliary switch for contactors 3RT2.1
  • Configuration: 2 NO lateral switches on the left (43/44, 53/54), 2 NO lateral switches on the right (23/24, 33/34)
  • Current path: 1 NO spring-loaded terminal


Product

Manufacturer Material ID -
3RH2911-2DA20
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

-
Siemens

General data

Model -
Top mounting
Lamp holder -
None
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Number of fault-signal switches -
0
Type of electric connection -
Spring clamp connection

Mechanical data

Mounting method -
Other

Electrical data

Rated operation current Ie at AC-15, 230 V -
6 Ampere

Availability Back Order

£10.99
