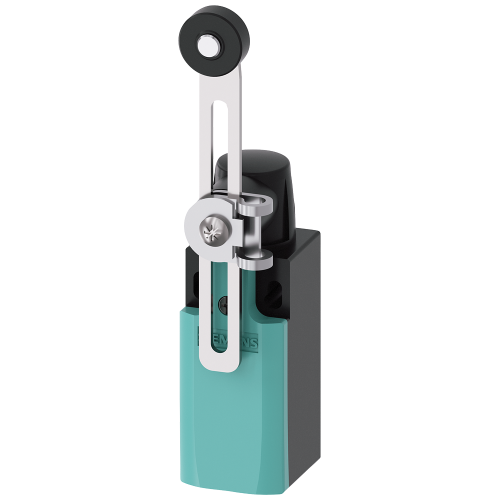

3SE52320HK50

Position switch, plastic enclosure, EN50047, 31 mm device connection

Manufacturer's No: 3SE5232-0HK50     Manufacturer: Siemens
Position switch, plastic enclosure, EN50047, 31 mm device connection

Availability Back Order

£29.91
  • Position switch with plastic enclosure according to EN 50047, 31mm
  • Device connection: 1 x (M20 x 1.5)
  • 1 NO/1 NC quick action contacts integrated (non-replaceable)
  • Adjustable-length twist lever for right/left adjustment
  • Adjustable with plastic roller, 19mm

Accessories



Product

Manufacturer Material ID -
3SE5232-0HK50
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens

Electrical data

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere

Mechanical data

Diameter sensor -
- Millimetre
Material housing -
Plastic
Height of sensor -
49.4 Millimetre
Housing material -
Plastic
Length of sensor -
182 Millimetre
Width sensor -
31 Millimetre

General data

Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP65
Type of control element -
Adjustable rotary lever
Type of interface -
None
Alignment of the control element -
Roller cam straight
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Interface type -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Switching function -
Quick-break switch

Ambient conditions

Ambient temperature during operating -
-25 Degrees celsius

Safety data

Explosion safety category for dust -
None
Explosion safety category for gas -
None
Number of safety auxiliary contacts -
0
Type of interface for safety communication -
None
