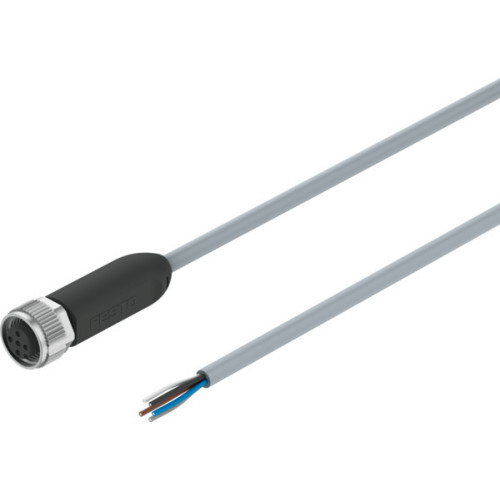

NEBA-M12G5-U-5-N-LE5 Connecting cable

Manufacturer's No: NEBA-M12G5-U-5-N-LE5     Manufacturer: Festo
NEBA-M12G5-U-5-N-LE5 Connecting cable

Availability Back Order

£19.40
  • Connecting cable for field devices (sensors, actuators) to controllers
  • Conforms to standards: EN 61076-2-101, EN 61984
  • Approval: c UL us listed (OL)
  • Cable designation: Without inscription label holder
  • Weight: 142 g
  • Electrical connection 1: M12x1, A-coded, 5 cores, screw-type lock
  • Electrical connection 2: Open end, 5 cores
  • Operational voltage range DC: 0-60 V (0-30 V for UL applications)
  • Operational voltage range AC: 0-48 V (0-30 V for UL applications)
  • Current rating: 4 A at 40°C

Read more

  • Immunity to surge: 1.5 KV
  • Cable length: 5 m, suitable for energy chains/robot applications
  • Cable characteristics: Abrasion-resistant, low adhesion, flame-retardant
  • Test conditions: Torsional strength >300,000 cycles, Flexural strength >50,000 cycles
  • Bending radius: Fixed cable 14 mm, moving cable 46 mm
  • Cable diameter: 4.5 mm, 5 x 0.25 mm²
  • Degree of protection: IP65, IP68, IP69K
  • Special characteristics: UV resistant, oil resistant, ozone-resistant
  • Ambient temperature: -40°C to 85°C (-40°C to 50°C for UL applications)
  • Storage temperature: -25°C to 55°C (-40°C to 85°C during transport)
  • Relative air humidity: Max. 93% at 40°C
  • Overvoltage category: II
  • CE mark, UKCA marking
  • Cleanroom class: Class 4
  • Materials: CFC-free, RoHS-compliant, cadmium-free, halogen-free
  • Pollution degree: 3, low corrosion stress
  • Cable sheath: TPE-U(PUR), Grey color
  • Housing: TPE-U(PUR), Black color
  • Screw-type lock: Die-cast zinc, nickel-plated
  • Seals: FPM, Electrical contact: Gold-plated copper alloy, Insulating sheath: PP

Accessories



Product

Manufacturer Material ID -
NEBA-M12G5-U-5-N-LE5
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
TR
UNSPSC -
30102206
