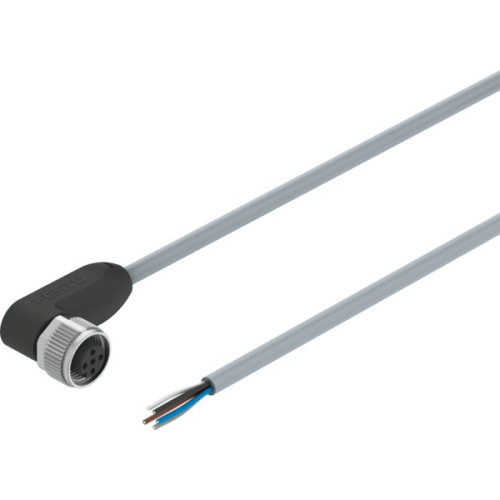

NEBA-M12W5-U-10-N-LE5 Connecting cable

Manufacturer's No: NEBA-M12W5-U-10-N-LE5     Manufacturer: Festo
NEBA-M12W5-U-10-N-LE5 Connecting cable

Availability Back Order

£30.04
  • Cable Type: NEBA-M12W5-U-10-N-LE5
  • Conforms to Standards: EN 61076-2-101, EN 61984
  • Approval: c UL us listed (OL)
  • Intended Use: Connects field devices (sensors, actuators) with controllers
  • Cable Designation: Without inscription label holder
  • Frequency of Connection: 100 Hz
  • Weight: 275 g
  • Certificate Authority: UL E253748
  • Electrical Connection 1: Field device side, M12x1 A-coded, 5 cores, screw-type lock
  • Electrical Connection 2: Controller side, open end, 5 cores

Read more

  • Operational Voltage Range DC: 0-60 V (0-30 V for UL applications)
  • Operational Voltage Range AC: 0-48 V (0-30 V for UL applications)
  • Current Rating: 4 A at 40°C
  • Immunity to Surge: 1.5 KV
  • Cable Length: 10 m
  • Cable Characteristics: Suitable for energy chains/robot applications, abrasion-resistant, low adhesion, flame-retardant
  • Test Conditions: Torsional strength >300,000 cycles, Flexural strength >50,000 cycles, Energy chain >5 million cycles
  • Bending Radius: Fixed cable 14 mm, Moving cable 46 mm
  • Cable Diameter: 4.5 mm, Structure: 5 x 0.25 mm²
  • Degree of Protection: IP65, IP68, IP69K (In assembled state)
  • Special Characteristics: UV resistant, hydrolysis-resistant, oil resistant, ozone-resistant
  • Outdoor Applications: Class D1 based on IEC 60654-1
  • Ambient Temperature: -40°C to 85°C (-40°C to 50°C for UL applications)
  • Storage Temperature: -25°C to 55°C (-40°C to 85°C during transport)
  • Relative Air Humidity: Max. 93% at 40°C
  • Altitude of Use: <= 2000 m NHN
  • Overvoltage Category: II
  • Material: Cable sheath - TPE-U(PUR) Grey, Housing - TPE-U(PUR) Black, Screw-type lock - Die-cast zinc, nickel-plated, Seals - FPM, Electrical contact - Gold-plated copper alloy, Insulating sheath - PP
  • Compliance: CE mark, UKCA marking, LABS (PWIS) conformity, RoHS compliant, Cadmium-free, Halogen-free, Phosphoric acid ester-free
  • Cleanroom Class: Class 4 according to ISO 14644-1
  • Pollution Degree: 3, Corrosion Resistance Class CRC: 1 (Low corrosion stress)

Accessories



Product

Manufacturer Material ID -
NEBA-M12W5-U-10-N-LE5
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
TR
UNSPSC -
30102206
