6AG14378SB007AY0

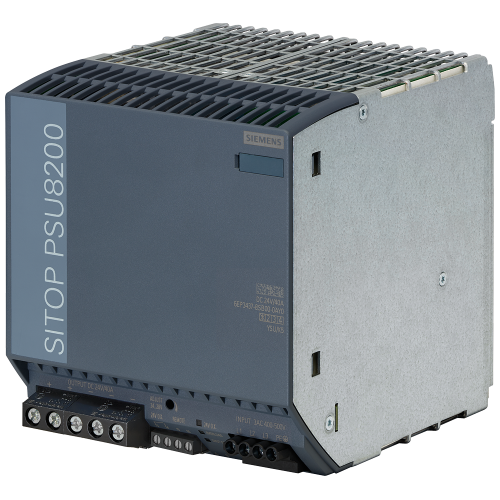

SIPLUS PSU8200 3ph DC 24V 40A

Manufacturer's No: 6AG1437-8SB00-7AY0     Manufacturer: Siemens
SIPLUS PSU8200 3ph DC 24V 40A

Availability Back Order

£944.00
  • Model: SIPLUS PS PSU8200
  • Input Voltage: 400-500 V AC
  • Output Voltage: 24 V DC
  • Output Current: 40 A
  • Operating Temperature: -25 to +70 °C
  • Conformal coating for protection
  • Stabilized power supply for reliable performance


Product

Manufacturer Material ID -
6AG1437-8SB00-7AY0
Net Weight -
3.30kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32121704

Electrical data

1st secondary output voltage -
24 Volt
Max. output current 1 -
40 Ampere
Nominal value output current 1 -
40 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
960 Watt
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Secondary voltage adjustable -

General data

Degree of protection (IP rating) -
IP20
Modular version -
Rail mounting possible -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection

Mechanical data

Depth -
150 Millimetre
Height -
145 Millimetre
Recess height -
225 Millimetre
Recess width -
135 Millimetre
Width -
135 Millimetre

Availability Back Order

£944.00
