3SE51120CR01

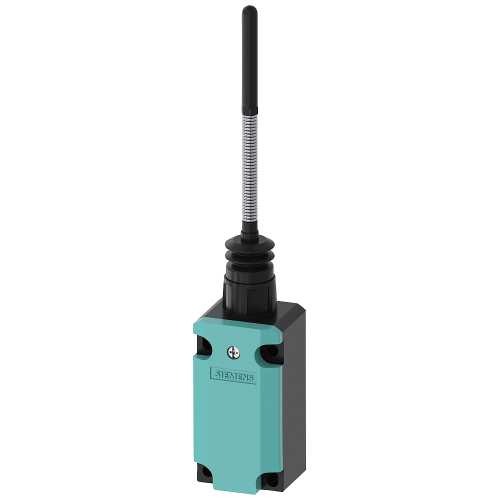

Position switch, metal encl. 40 mm, EN50041, device connection

Manufacturer's No: 3SE5112-0CR01     Manufacturer: Siemens
Position switch, metal encl. 40 mm, EN50041, device connection

View 3D

Availability Back Order

£41.89
  • Position switch with metal enclosure (40 mm) according to EN 50041
  • Device connection: 1x (M20 x 1.5)
  • 1 NO/1 NC quick action contacts
  • Spring rod actuator with a total length of 142.5 mm
  • Plastic plunger length: 50 mm

Accessories

Component part



Product

Manufacturer Material ID -
3SE5112-0CR01
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
39122216

Technical Specification

-
Siemens

Electrical data

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere

Mechanical data

Diameter sensor -
- Millimetre
Material housing -
Metal
Height of sensor -
37.3 Millimetre
Housing material -
Metal
Length of sensor -
220.299999999 Millimetre
Width sensor -
40 Millimetre

General data

Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP65
Type of control element -
Spring-rod
Type of interface -
None
Alignment of the control element -
Roller cam straight
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (NEMA) -
12
Interface type -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Switching function -
Quick-break switch

Ambient conditions

Ambient temperature during operating -
-25 Degrees celsius

Safety data

Explosion safety category for dust -
None
Explosion safety category for gas -
None
Number of safety auxiliary contacts -
0
Type of interface for safety communication -
None

Availability Back Order

£41.89
