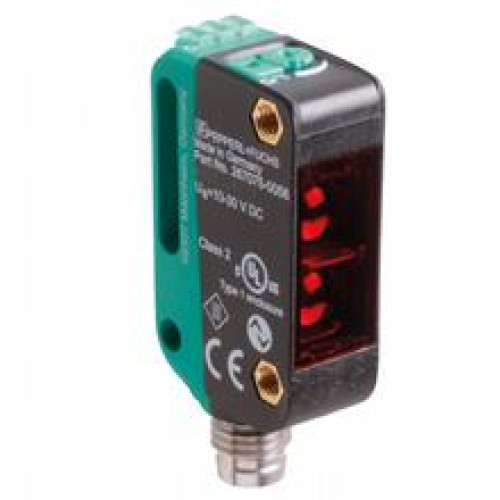

OBT350-R100-2EP-IO-V31-1T

Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-0070     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 350 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability Back Order

£97.97
  • Detection range: 5 to 350 mm
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
267075-0070
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability Back Order

£97.97
