8068748

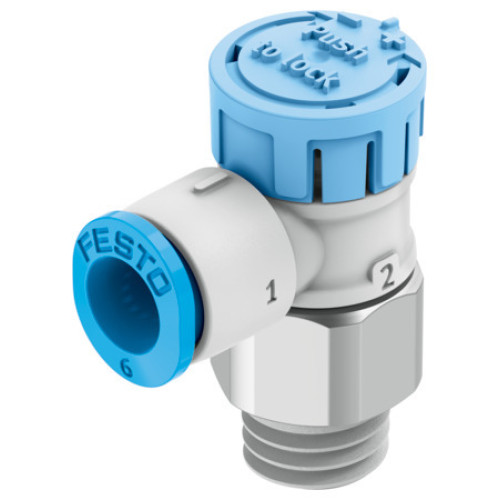

VFOE-LS-T-G18-Q6 One-way flow control valve

Manufacturer's No: VFOE-LS-T-G18-Q6     Manufacturer: Festo
VFOE-LS-T-G18-Q6 One-way flow control valve

Availability Back Order

£11.33
  • Valve function: Supply air one-way flow control
  • Pneumatic connection, port 1: QS-6
  • Pneumatic connection, port 2: G1/8
  • Standard nominal flow rate in flow control direction: 170 L/min
  • Standard nominal flow rate in blocked direction: 110 L/min
  • Ambient temperature range: -10°C to 60°C
  • Material housing: PBT
  • Operating pressure range: 0.02 MPa to 10 MPa
  • Standard flow rate in flow control direction at 0.6 MPa: 270 L/min
  • Standard flow rate in non-return direction at 0.6 MPa: 300 L/min

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 4 according to ISO 14644-1
  • Media temperature range: -10°C to 60°C
  • Max. tightening torque: 6 Nm
  • Nominal torque: 5 Nm
  • Product weight: 9.5 g
  • Material compliance: RoHS-compliant
  • Material cover: PBT
  • Material dynamic seals: HNBR
  • Material threaded bolt: Galvanised steel
  • Material release ring: PBT
  • Material static seals: NBR

Accessories

PUN-H-6X1-BL Plastic tubing

Product Code - 197384
Price £1.09
Back Order


Product

Manufacturer Material ID -
VFOE-LS-T-G18-Q6
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability Back Order

£11.33
