3RH21311KG400LA4

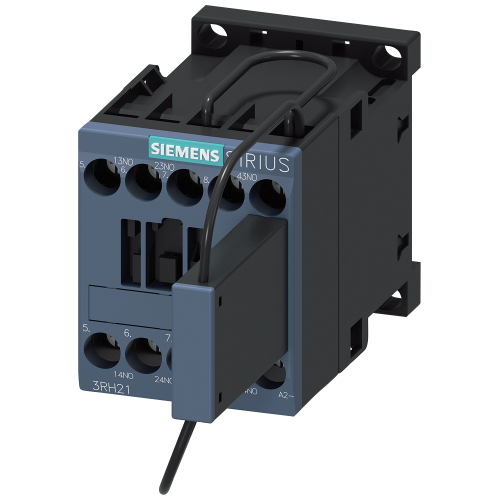

Contactor relay, 3 NO, 125 V DC, S00, screw terminal, with suppressor diode

Manufacturer's No: 3RH2131-1KG40-0LA4     Manufacturer: Siemens
Contactor relay, 3 NO, 125 V DC, S00, screw terminal, with suppressor diode

View 3D

Availability Back Order

£64.80
  • Contactor relay for railway applications
  • 3 Normally Open contacts rated at 125 V DC
  • Coil voltage range: 0.7 to 1.25* US
  • Integrated suppressor diode
  • Size: S00
  • Screw terminal with DIN-rail mounting optimized (20G)
  • Suitable for PLC outputs


Product

Manufacturer Material ID -
3RH2131-1KG40-0LA4
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Screw connection

General data

Number of auxiliary contacts as normally closed contact -
-
Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally open contact -
3

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
125 Volt
Rated control supply voltage at DC -
125 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC

Availability Back Order

£64.80
