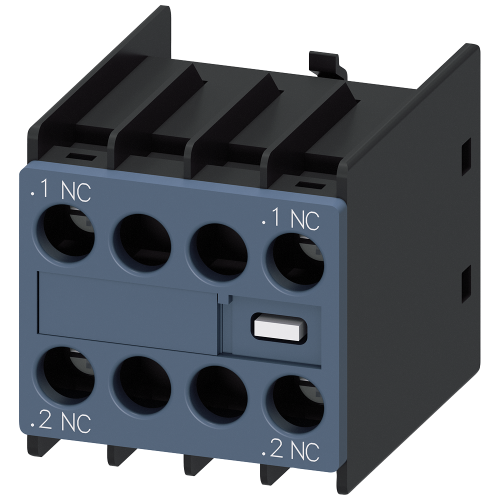

3RH29111NF02

Electron. contr. auxiliary switch 2 NC, current path 1 NC, --, --, 1 NC front-side for 3RH and 3RT s

Manufacturer's No: 3RH2911-1NF02     Manufacturer: Siemens
Electron. contr. auxiliary switch 2 NC, current path 1 NC, --, --, 1 NC front-side for 3RH and 3RT s

View 3D

Availability Back Order

£27.95
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Solid-state compatible
  • 2 Normally Closed (NC) contacts
  • Current path: 1 Normally Closed (NC) contact
  • Front-mounted with screw terminals
  • Contact ratings: 0.1A/0.2A


Product

Manufacturer Material ID -
3RH2911-1NF02
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Electrical data

Rated operation current Ie at AC-15, 230 V -
- Ampere

General data

Model -
Top mounting
Lamp holder -
None
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0
Type of electric connection -
Screw connection

Mechanical data

Mounting method -
Other

Availability Back Order

£27.95
