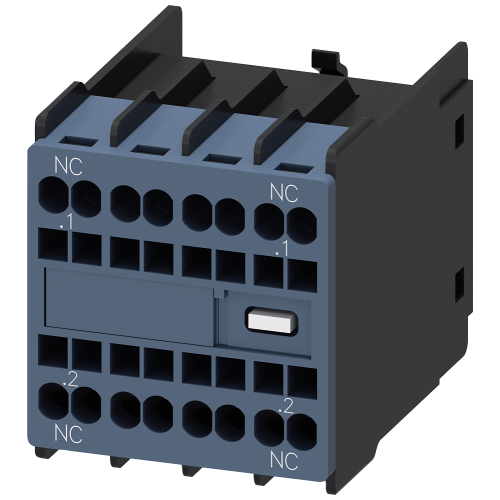

3RH29112NF02

Electron. contr. auxiliary switch on the front, 2 NC Current path 1 NC, 1 NC for 3RH and 3RT spring-

Manufacturer's No: 3RH2911-2NF02     Manufacturer: Siemens
Electron. contr. auxiliary switch on the front, 2 NC Current path 1 NC, 1 NC for 3RH and 3RT spring-

View 3D

Availability Back Order

£27.95
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Solid-state compatible
  • Located on the front
  • Configuration: 2 normally closed (NC) contacts with .1/.2 rating
  • Current path: 1 normally closed (NC) contact (solid-state compatible)
  • Equipped with spring-loaded terminals


Product

Manufacturer Material ID -
3RH2911-2NF02
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Electrical data

Rated operation current Ie at AC-15, 230 V -
- Ampere

General data

Model -
Top mounting
Lamp holder -
None
Lamp cap/base -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of fault-signal switches -
0
Type of electric connection -
Spring clamp connection

Mechanical data

Mounting method -
Other

Availability Back Order

£27.95
