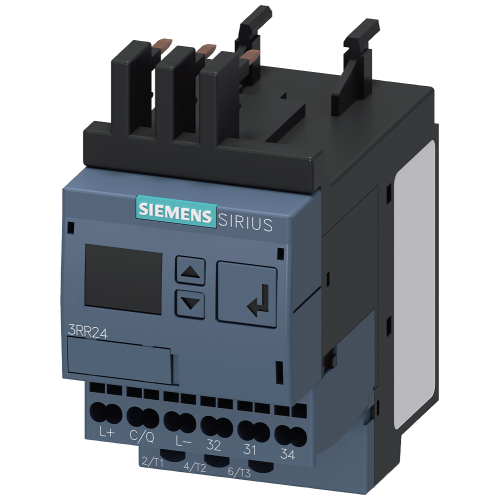

3RR24412AA40

Current monitoring relay for IO-Link, can be mounted to Contactor 3RT2, Size S00 Apparant/active cur

Manufacturer's No: 3RR2441-2AA40     Manufacturer: Siemens
Current monitoring relay for IO-Link, can be mounted to Contactor 3RT2, Size S00 Apparant/active cur

View 3D

Availability Back Order

£219.39
  • Apparant/active current monitoring: 1.6-16 A, 20-400 Hz, 3-phase
  • Supply voltage: 24 V DC
  • Monitoring for current overshoot, undershoot, asymmetry, phase failure, cable break, phase sequence, residual current, blocking current, switching cycle, and operating hours counter
  • Warning and alarm thresholds
  • Auto-reset or manual reset
  • ON delay: 0-9999.9 s
  • OFF delay: 0-9999.9 s
  • Reclosing delay: 0-300 min
  • Spring-type connection system
  • Compatible with Contactor 3RT2, Size S00

Accessories



Product

Manufacturer Material ID -
3RR2441-2AA40
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Voltage type for actuating -
DC
Current measurement range -
1.6 Ampere
Three-phase over current possible -
Three-phase under current possible -

General data

Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Type of electric connection -
Spring clamp connection

Mechanical data

Depth -
80 Millimetre
Height -
90 Millimetre
Width -
45 Millimetre

Availability Back Order

£219.39
