3RR21412AA30

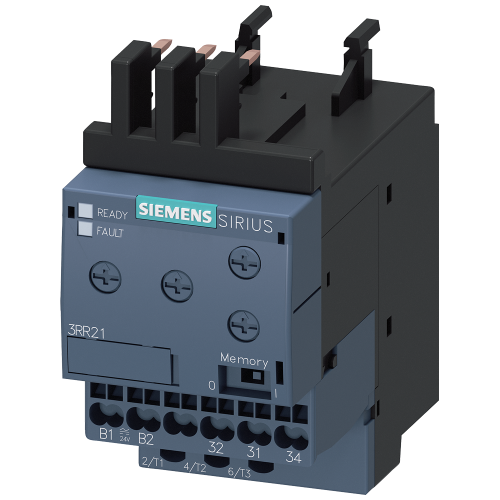

Monitoring relay, can be mounted onto 3RT2 contactor, size S00 basic, 1.6-16 A

Manufacturer's No: 3RR2141-2AA30     Manufacturer: Siemens
Monitoring relay, can be mounted onto 3RT2 contactor, size S00 basic, 1.6-16 A

View 3D

Availability Back Order

£84.18
  • Monitoring relay for Contactor 3RT2, Size S00
  • Apparent current monitoring range: 1.6-16 A, 20-400 Hz, 2-phase
  • Supply: 24 V AC/DC
  • Features monitoring for current overshoot, undershoot, phase failure, and cable break
  • ON delay: 0-60 s
  • Noise pulse suppression: 0-30 s
  • Switching hysteresis: 6%
  • Spring-type connection system

Accessories



Product

Manufacturer Material ID -
3RR2141-2AA30
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

-
Siemens

General data

Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Max. permitted delay-on energization time -
60 Second
Max. permitted off-delay time -
30 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Type of electric connection -
Spring clamp connection

Electrical data

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Voltage type for actuating -
AC/DC
Current measurement range -
1.6 Ampere

Mechanical data

Depth -
80 Millimetre
Height -
90 Millimetre
Width -
45 Millimetre

Availability Back Order

£84.18
