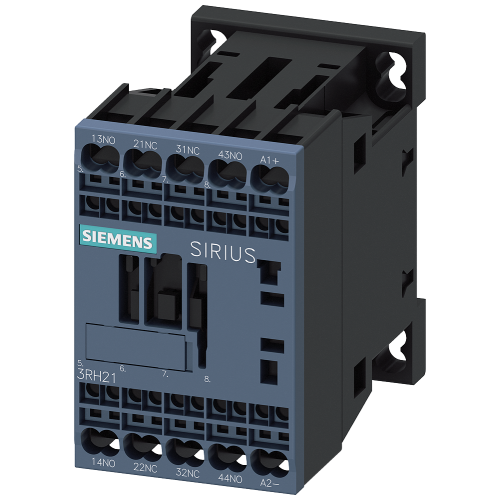

3RH21222FB40

Contactor relay, 2 NO + 2 NC, 24 V DC, with integrated diode, Size S00, Spring-type terminal

Manufacturer's No: 3RH2122-2FB40     Manufacturer: Siemens
Contactor relay, 2 NO + 2 NC, 24 V DC, with integrated diode, Size S00, Spring-type terminal

View 3D

Availability Back Order

£37.35
  • Contactor relay
  • Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
  • Coil Voltage: 24 V DC
  • Integrated diode
  • Size: S00
  • Terminal Type: Spring-type


Product

Manufacturer Material ID -
3RH2122-2FB40
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Mechanical data

Mounting method -
UN
Connection type auxiliary circuit -
Spring clamp connection

General data

Number of auxiliary contacts as change-over contact -
-
Number of auxiliary contacts as normally closed contact, delayed switching -
-
Number of auxiliary contacts as normally open contact, leading -
-
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2

Electrical data

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie, 400 V -
3 Ampere
Voltage type for actuating -
DC

Availability Back Order

£37.35
